High Efficiency PLC Control Heating Agriculture Greenhouse Air Source Heat Pump
Description:1. Using an intelligent water routing control system, the cooling temperature is 7-12 degrees, reaching 60 degrees 2. Make the condensation temperature meet the physical requirements of heat transfer working fluid compression condensation 3. Lower the system high pressure to make the compressor operate at low load, extending the life of the compressor 4. The incoming water directly uses tap water pressure. The circulating water pump is started only when insulation operation is required, reducing the power consumption of the water pump
Hotline:+8613815020506
Details
Gallery

Product Description


ModelYJR-C-05HPYJR-C-07HPYJR-C-
           10HP-A
YJR-C-
           10HP-B
YJR-C-
           12HP-A
YJR-C-12HP-BYJR-C-15HP-BYJR-C-20HPYJR-C-25HPYJR-C-30HP
Heating Capacitykw222636404248608095116
Circulating Water Volumem³/h3.774.466.26.867.38.2310.3213.7116.3419.95
Water ProductionL/h47255877385690210301289171520422494
Power/3N/380V~50Hz
Rated Powerkw4.585.429.128.8510.5510.6513.6418.221.627.6
COP
4.84.83.944.523.984.514.394.44.394.21
Rated CurrentA7.68.915.114.516.817.225.731.637.543.6
Max Powerkw5.847.1311.511.514.214.219.724.228.836.8
Max CurrentA9.312.518.918.924.824.833.539.846.754.5
Water Side Pressure LosskPa50506565656565757575
Compressor/Famous Brand High Efficiency Compressor
Compressor Quantitypc1122222444
Water Side Heat Exchanger/High efficiency tank heat exchanger
Water temperature settingºC55ºC (40~60ºC adjustable)
Applicable ambient temperatureºC-10~43ºC
External Dimensionsmm850*900*11001410*900*1100985*965*19601410*900*1100985*965*19601960*965*1960
Net Weightkg140180320350340380480750830950
NoisedB(A)585860606060562656568


    Advantages
1. Using an intelligent water routing control system, the cooling temperature is 7-12 degrees, reaching 60 degrees
2. Make the condensation temperature meet the physical requirements of heat transfer working fluid compression condensation
3. Lower the system high pressure to make the compressor operate at low load, extending the life of the compressor
4.    The incoming water directly uses tap water pressure. The circulating    water pump is started only when insulation operation is required,    reducing the power consumption of the water pump
5. Produce hot water around 60 degrees to achieve miniaturization of the water tank,
6.    When the temperature of the water tank drops, the unit automatically    enters the cycle heating, always ensuring that the water in the tank is    hot.

       Applicable scope: hotels, hotels, sauna entertainment centers, large clubs, homes, various farms, etc.

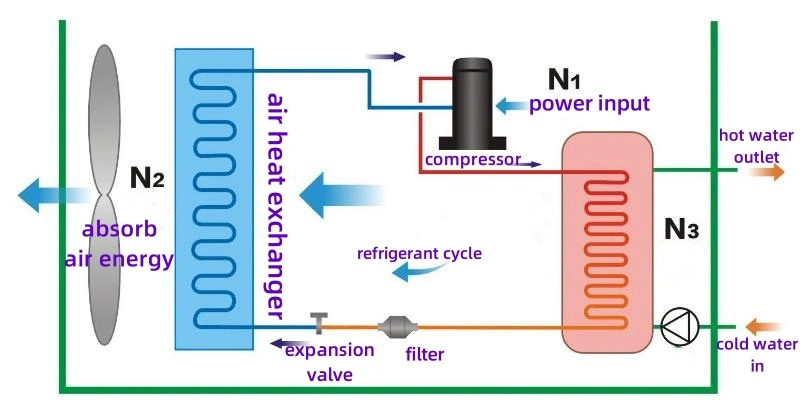

Working principle

    Product configuration
    1. High Energy Efficiency Heat Pump Low Temperature Compressor
Using    famous brand ZW series scroll compressors, mature and reliable    technology, high production level. Yijia air energy water heater's    second-generation products are greatly improved in performance,    especially in heating capacity and long service life through system    optimization design and the application of various parts.

    2. Multi-flow Evaporator
Using    internally threaded copper casing hydrophilic aluminum foil multi-path    evaporator, blue hydrophilic film aluminum foil fins combined with    internally threaded copper pipes, the surface has hydrophilicity, using    the rapid discharge of condensation water, not easy to frost, defrost    thoroughly, In order to ensure the durability of the system, the    effective heat exchange area of the evaporator is increased, and the    heat exchange is uniform and sufficient to ensure the absorption of heat    from the low-level heat source in multiple places.

    3. Copper Tube Heat Exchanger
Using    WDD intelligent heating technology, coaxial spiral heat exchange copper    tube, turbulent heat exchange, avoiding water scale, the whole copper    tube inside has no solder joints, the flow channel has no water blind    area, while being corrosion resistant, the tube length is extended, and    the contact area with refrigerant becomes larger, The heat exchange    utilization is increased, the heat exchange effect is sufficient, and it    is enough to ensure the improvement of the unit's energy efficiency    ratio.

    4. Throttling Device
Adopt    domestic big brand Sanhua electronic expansion valve and four-way    reversing valve, automatic adjustment, to ensure flexible reversing, no    air leakage, no jamming, function control system, stable operation, save    money and effort, effectively solve the problem of winter unit    evaporator frosting, ensure the unit can operate normally even in cold    winter.

    5. Silent Fan
Using    heat exchanger and low speed high torque new three-dimensional design    turbine fan, while improving the efficiency of the heat exchanger, it    can automatically adjust the wind speed according to the ambient    temperature, run quietly, use large diameter low speed wind, motor,    improve efficiency, reduce frosting, reduce noise.

    6. Intelligent Control System
The    use of air source heat pump intelligent controller, control logic    reasonable selection of high-quality materials, exhaust protection,    overcurrent protection, phase sequence protection, water temperature too    high protection, high and low pressure protection and other    multi-faceted protection functions fully intelligent control.

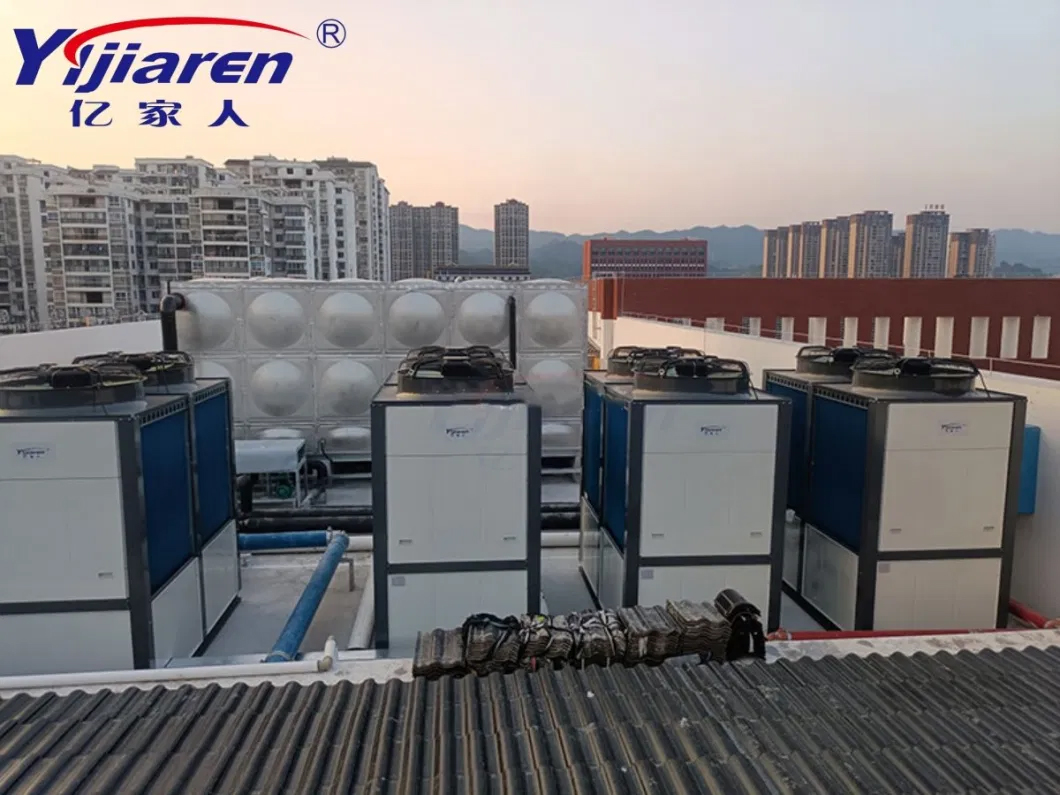

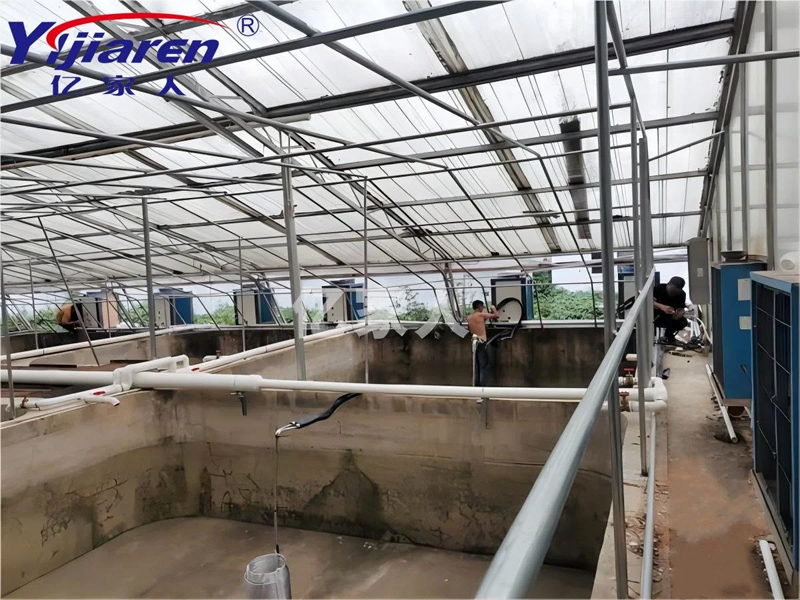

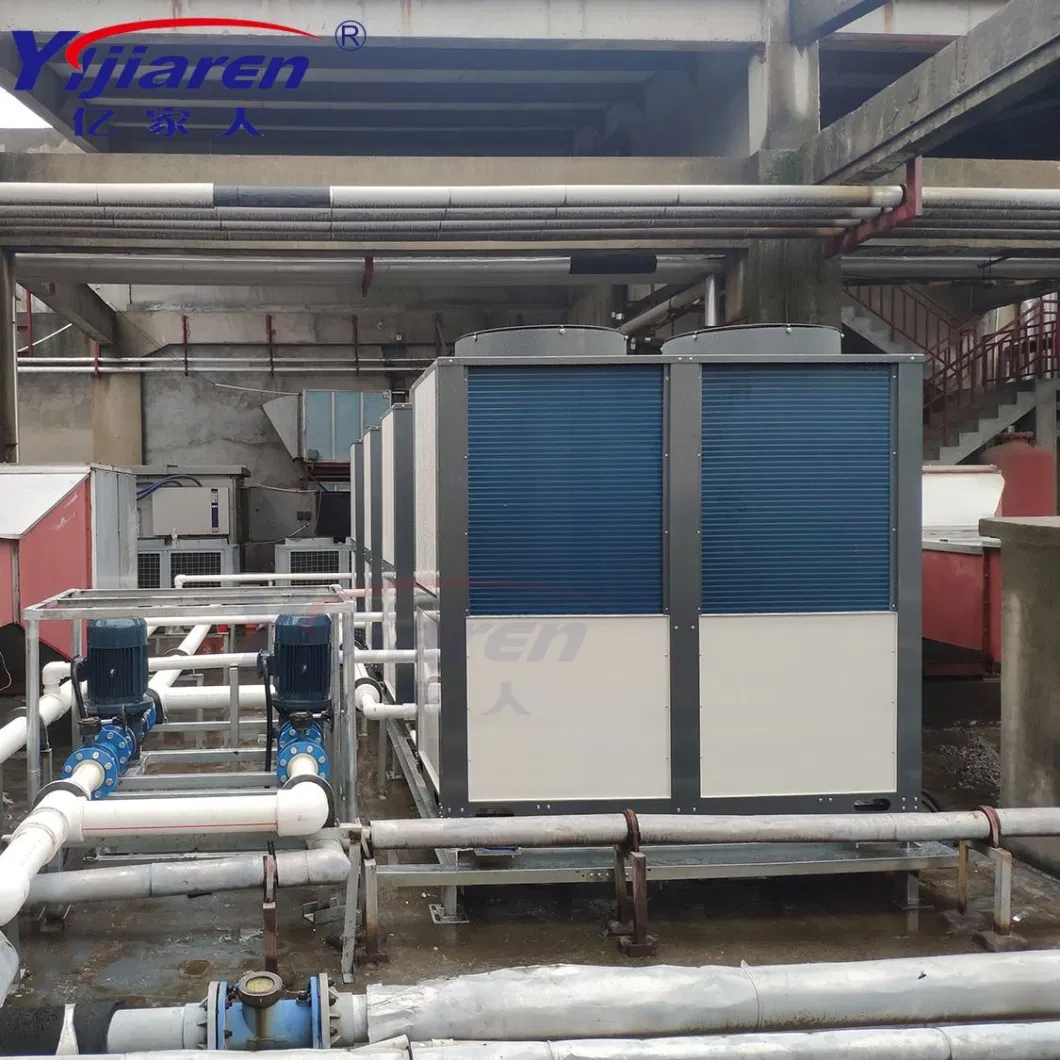

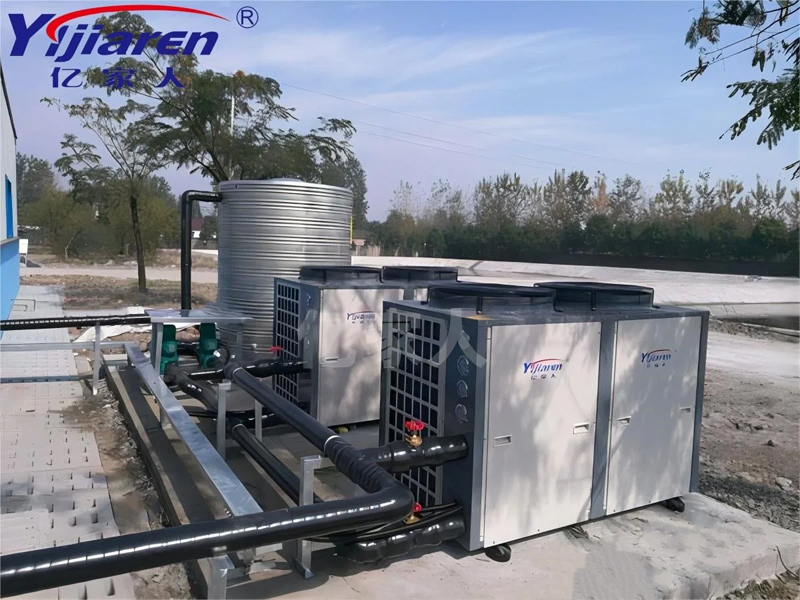

    Previous Engineerings

2.jpg   3.jpg   Commercial Building Air to Water Fan Coil Cooling Heating Solution Hot Water Application Heat Pump System

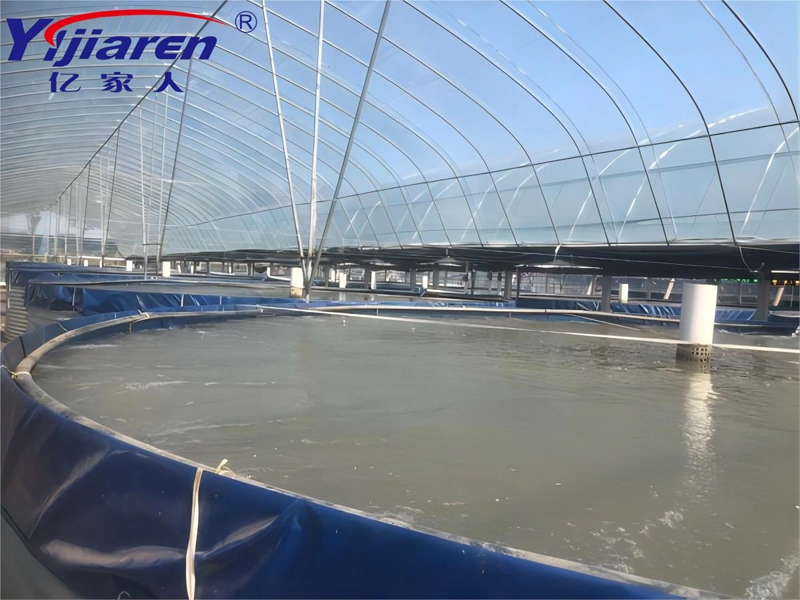

Application
